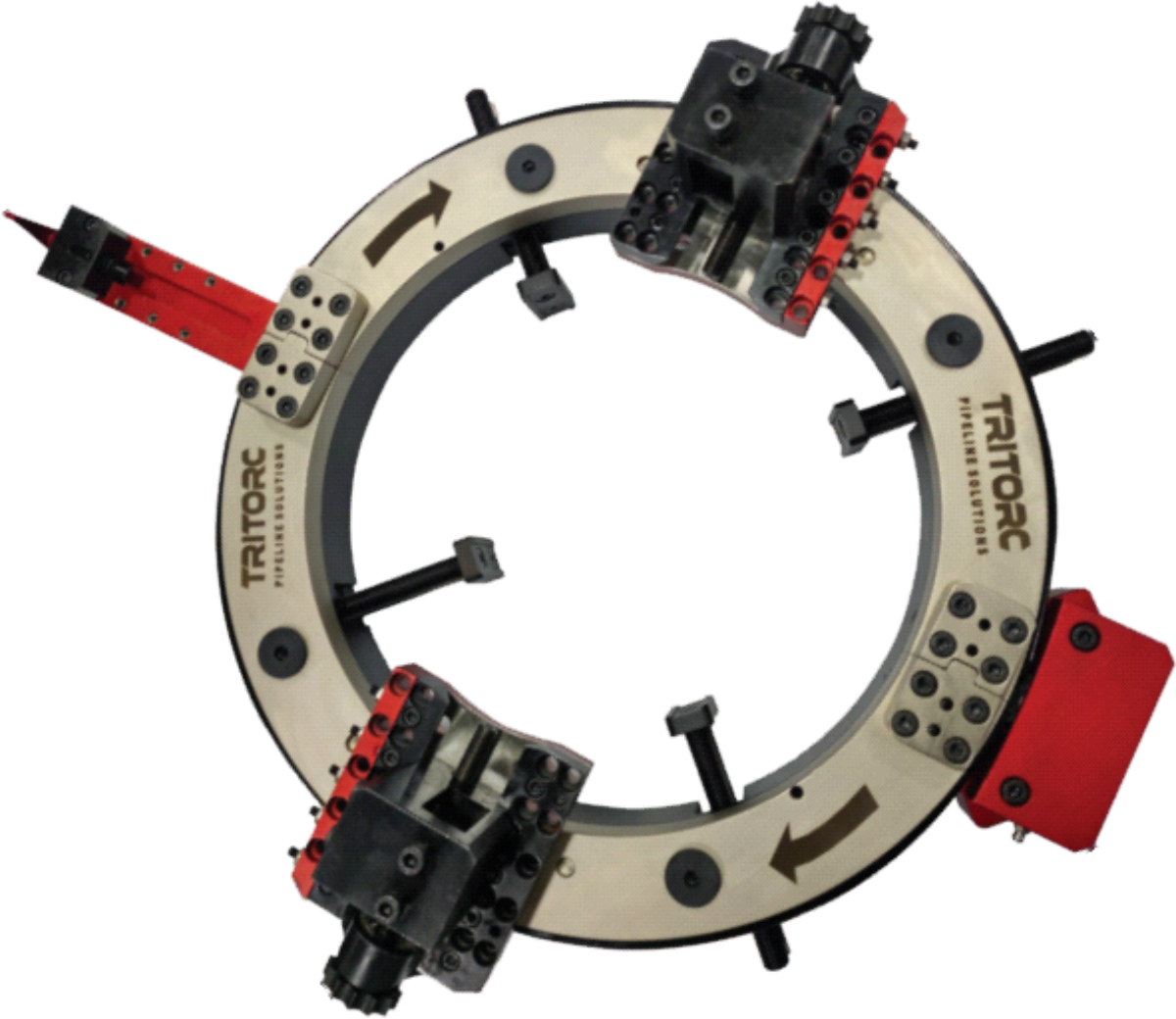

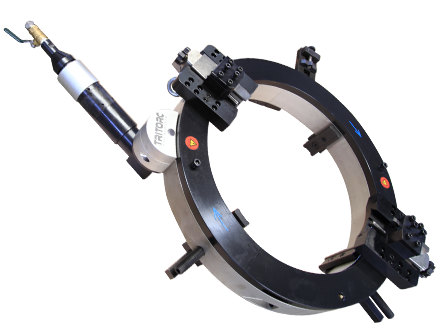

The TRITORC TSF Series Machine is ideal for all types of Pipe Cutting, Beveling And End Preparation Operations. The Split Frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. For safety purposes, wherein hot working is not possible, flame less / spark free cutting can be carried out.
- Easier assembly and disassembly of frames halves with Split Frame Technology.
- Quickly splits and install on outer dia of the pipe.
- Simultaneously Cuts & Bevels resulting in Precise Finishing.
- Low Axial and Radial Clearance.
- Auto Feed for Cutting & Beveling.
- J Bevel: Various Degree & Radius.
- Multiple Motor Positioning.
- Modular Tool Slides
Drive Options:
Pneumatic, Hydraulic & Electric
Air Requirement:
100 CFM @ 0.7/0.8Mpa
Hydraulic Requirement:
2-60L per min. @12.5Mpa
Power Supply:
380-440V, 3Phase, 50/60Hz
Electric Requirement:
220-240V 1PH 50/60HZ
